MEWPS LT20JE
Prospekt stroje ke stažení.pdf| Overall Weight | 9 500 kg |
|---|---|
| Max. working height | 21,5 m |
| Battery | Lithium 48 V / 460 Ah |
| Max. working height | 21,5 m |
| Max. platform height | 19,5 m |
| Max. operating range | 14 m |

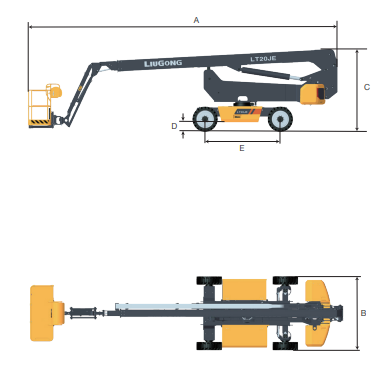

| A. Overall Length /stowed/ | 10,2 m |
| B. Overall Width /stowed/ | 2,42 m |
| C. Overall Height /stowed/ | 2,75 m |
| Overall Length /transport/ | 10,2 m |
| Overall Width /transport/ | 2,29 m |
| Overall Height /transport/ | 2,67 m |
| Platform Size / LxWxH/ | 1,83x0,76x1,1 |
| D. Ground Clearance | 0,31 m |
| E. Wheelbase | 2,5 m |
| Turning radius (inside/Outside) | 2,4 / 5,5 m |
| Tyres | 33x 12-20 (Solid off-road tyre) |
Safe and Reliable
- High quality tilt and weight sensor, for safe and reliable operation;
- Modern electronic control system to provide security and safety;
- The protection level of components of the whole machine is above IP65
Intelligent and efficient
- The turntable rotation 360° continuously with compact tail, suitable for narrow space operation;
- Combine calibration with intelligent and efficient system;
- Oscillating axles as standard;
- Four wheel strong AC electric drive, climbing capacity up to 45%, strong trafficability;
- High-power charger, large-capacity power battery, fast charging, ultra-long endurance
Energy saving and comfort
- Smooth descent on all booms;
- Automatic deceleration at the action limit position, stable action, proportionate control;
- ECU control ensures optimize battery usage.
Green and environmental protection
- Pure electric power, low use and maintenance cost, high return on investment;
- Green and environmental protection, no emission, low noise, meet indoor and outdoor working conditions.
Standard configuration
- Platform work lights · Working strobe lamp · Load Sensing System · Electro hydraulic proportional control · Automatic brake system · Tilt protection system · Telematics-BOX · Electric emergency descent system · Manual emergency descent system · Emergency stop system · Anti entrapment device · Remote fault diagnosis system · Overload protection · Efficient alarm warnings
